V BELT 92A SMOOTH IVORY
Material
PU
Hardness
SH 92 A
Tolerance
+/- 3 SHA

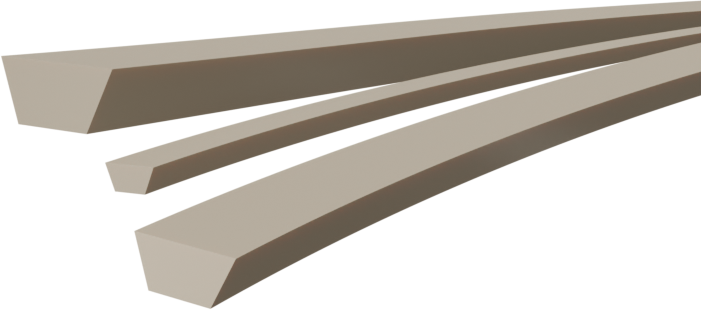

The V BELT 92A SMOOTH is an ivory-colored thermoplastic polyurethane (TPU) V-belt with a hardness of 92 Sh.A and a smooth surface.
It is part of the Belting Skill V belt range without reinforcement.
Due to the dimensional accuracy and strength of the TPU, it is suitable for industrial applications requiring reliability, such as handling systems, start/stop lines and packaging machines.
The range is available in profiles A, B and C, with dimensions 13×8 mm, 17×11 mm and 22×14 mm. Dimensional and performance characteristics vary according to the selected profile. The hardness tolerance is ± 3 Sh.A.
Codici prodotto e caratteristiche
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 211903006327 | 13X8 (A) | 0.82 | 10 | 30 | 98.4 | 105 | 4.2 | 38.4 | 84.5 |
| 211903006927 | 17X11 (B) | 1.46 | 18 | 30 | 98.4 | 140 | 5.5 | 69.1 | 152.1 |
| 211903008527 | 22X14 (C) | 2.4 | 29 | 30 | 98.4 | 200 | 7.9 | 115.2 | 193 |
