Notched v belt 88A smooth reinforced kevlar green
Material
PU
Hardness
SH 88 A
Tolerance
+/- 3 SHA

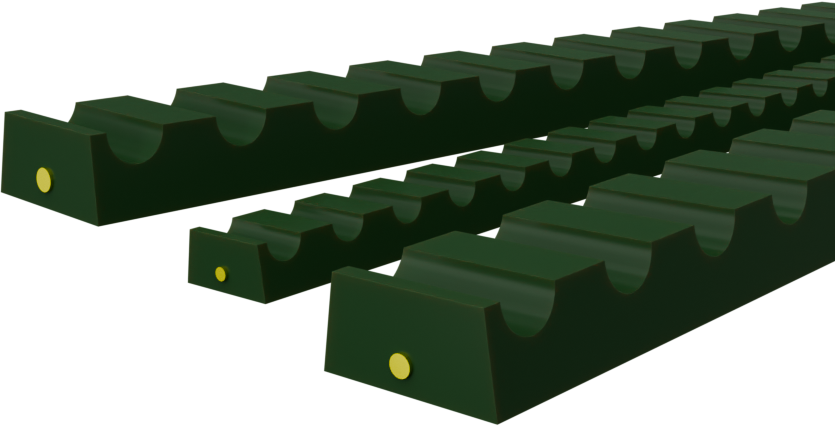

The Notched v belt 88A smooth reinforced kevlar is a serrated V-belt made of thermoplastic polyurethane (TPU), green in color, with a hardness of 88 Sh.A, smooth surface and Kevlar reinforcement.
It is part of the Belting Skill reinforced belt notched V range.
The combination of serrated profile and Kevlar reinforcement makes this belt suitable for applications requiring reliability, dimensional accuracy and a reinforced configuration. It is indicated for handling systems, start/stop lines and packaging machines.
The range is available in profiles A (13×8 mm), B (17×11 mm) and C (22×14 mm), with dimensional and performance characteristics varying according to the selected section. The hardness tolerance is ± 3 Sh.A.
Product codes and specifications
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 4.072.A/GRKN | 13X8 (A) | 0.82 | 10 | 30 | 98.4 | 75 | 3 | 25.5 | 56.6 |
| 4.072.B/GRKN | 17X11 (B) | 1.46 | 18 | 30 | 98.4 | 105 | 4.2 | 45.1 | 99.1 |
| 4.072.C/GRKN | 22X14 (C) | 2.4 | 29 | 30 | 98.4 | 135 | 5.4 | 74.5 | 163.8 |
