Ridge v belt 88A smooth green
Material
PU
Hardness
SH 88 A
Tolerance
+/- 3 SHA

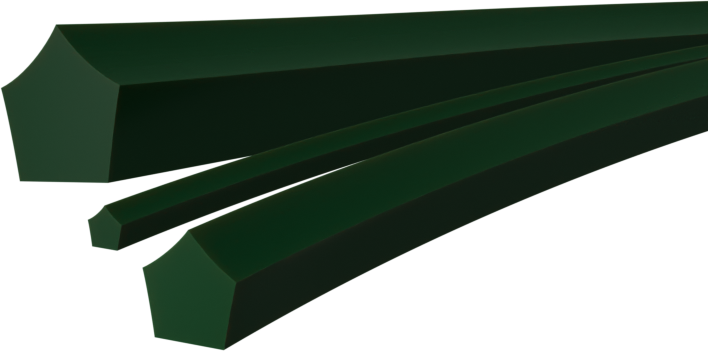

The Ridge v belt 88A smooth is a green, thermoplastic polyurethane (TPU) ridge V-belt with a hardness of 88 Sh.A and a smooth surface.
It is part of the Belting Skill V belt range without reinforcement.
The ridge configuration is indicated for applications requiring reliability, dimensional accuracy, and specific belt geometry. It can be used in handling systems, start/stop lines and packaging machines.
The range is available in profiles B (17×20 mm) and C (22×25 mm), with dimensional and performance characteristics varying according to the selected section. The hardness tolerance is ± 3 Sh.A.
Product codes and specifications
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 4.072.B/GPG | 17X20 (B) | 1.95 | 23.6 | 30 | 98.4 | 180 | 7.2 | 53.8 | 118.4 |
| 4.072.C/GPG | 22X25 (C) | 3.26 | 39.1 | 30 | 98.4 | 220 | 8.8 | 90 | 198 |
