Notched V BELT 85A SMOOTH TRANSPARENT
Material
PU
Hardness
SH 85 A
Tolerance
+/- 3 SHA

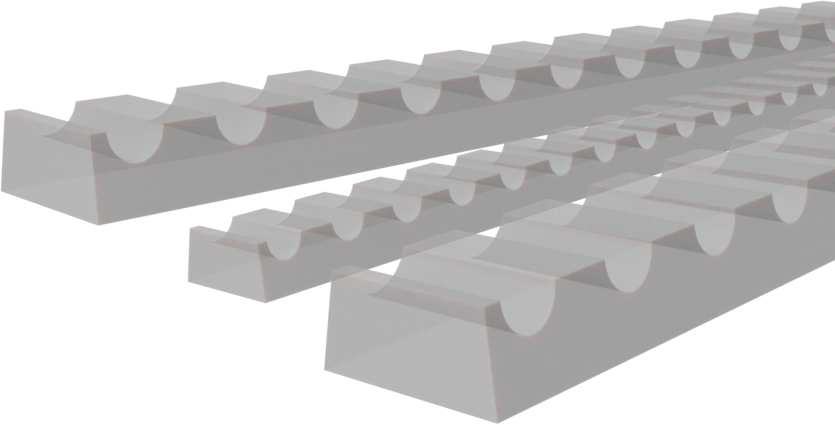

The Notched V BELT 85A SMOOTH is a serrated V-belt made of thermoplastic polyurethane (TPU), transparent color, with 85 Sh.A hardness and smooth surface.
It is part of the Belting Skill non-reinforced V belt notched range and is also available with FDA certification.
The notched configuration makes this belt suitable for applications that require reliability, dimensional accuracy, and greater flexibility than equivalent full versions. It is indicated for handling systems, start/stop lines and packaging machines.
The range is available in profiles A (13×8 mm), B (17×11 mm) and C (22×14 mm), with dimensional and performance characteristics varying according to the selected section. The hardness tolerance is ± 3 Sh.A.
Codici prodotto e caratteristiche
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 211909006374 | 13X8 (A) | 0.82 | 10 | 30 | 98.4 | 65 | 2.6 | 22.4 | 49.3 |
| 211909006974 | 17X11 (B) | 1.46 | 18 | 30 | 98.4 | 85 | 3.3 | 39.9 | 87.7 |
| 211909008574 | 22X14 (C) | 2.4 | 29 | 30 | 98.4 | 115 | 4.5 | 65.5 | 144 |
