Pentagonal v belt 88A smooth reinforced kevlar green
Material
PU
Hardness
SH 88 A
Tolerance
+/- 3 SHA

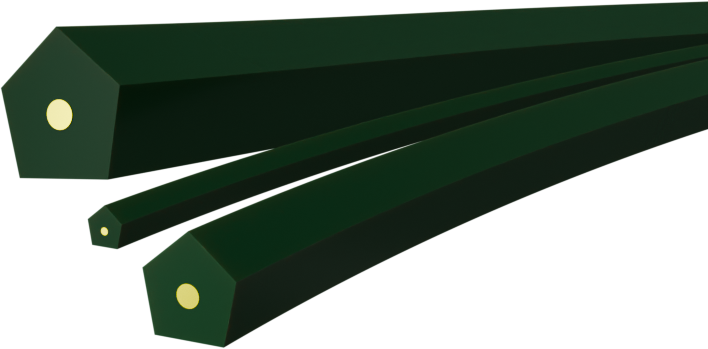

The Pentagonal v belt 88A smooth reinforced kevlar is a green, pentagonal thermoplastic polyurethane (TPU) V-belt with 88 Sh.A hardness, a smooth surface and Kevlar reinforcement.
It is part of the Belting Skill reinforced pentagonal V-belt range.
The combination of pentagonal geometry and Kevlar reinforcement offers a reinforced structure designed for applications requiring reliability, dimensional accuracy, and consistent performance over time. It is suitable for handling systems, start/stop lines and packaging machines.
Available in B (17×20 mm) and C (22×25 mm) profiles, this belt maintains high dimensional and quality standards. The hardness tolerance is ± 3 Sh.A.
Product codes and specifications
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 4.072.B/GRKPN | 17X20 (B) | 2.13 | 25.6 | 40 | 131.2 | 190 | 7.6 | 59 | 129.8 |
| 4.072.C/GRKPN | 22X25 (C) | 3.65 | 43.8 | 30 | 98.4 | 240 | 9.6 | 100.7 | 221.6 |
