V belt 88A smooth reinforced kevlar green
Material
PU
Hardness
SH 88 A
Tolerance
+/- 3 SHA

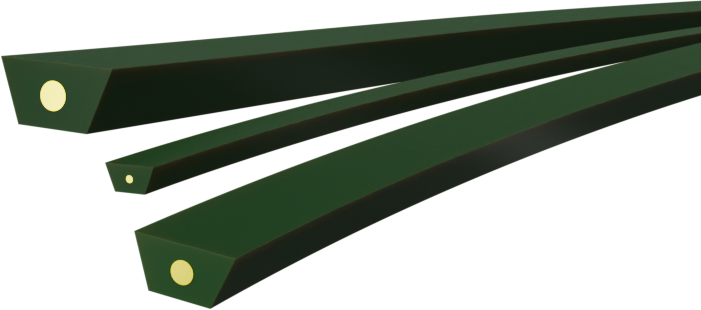

The V belt 88A smooth reinforced kevlar is a green, 88 Sh.A hardness, smooth-surfaced thermoplastic polyurethane (TPU) V-belt featuring Kevlar reinforcement.
It is designed for industrial applications that require reliability, dimensional accuracy and a reinforced configuration.
Kevlar reinforcement makes this V belt suitable for handling systems, start/stop lines and packaging machines where good mechanical performance is required. The range is available in profiles A (13×8 mm), B (17×11 mm) and C (22×14 mm), with dimensional and performance characteristics varying according to the selected section.
The hardness tolerance is ± 3 Sh.A.
Product codes and specifications
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 4.072.A/GRK | 13X8 (A) | 0.82 | 10 | 30 | 98.4 | 100 | 3.9 | 30 | 66 |
| 4.072.B/GRK | 17X11 (B) | 1.46 | 18 | 30 | 98.4 | 140 | 5.5 | 53 | 116.7 |
| 4.072.C/GRK | 22X14 (C) | 2.4 | 29 | 30 | 98.4 | 180 | 7.1 | 87.7 | 193 |
