Notched V BELT 85A SMOOTH reinforced polyester ORANGE
Material
PU
Hardness
SH 85 A
Tolerance
+/- 3 SHA

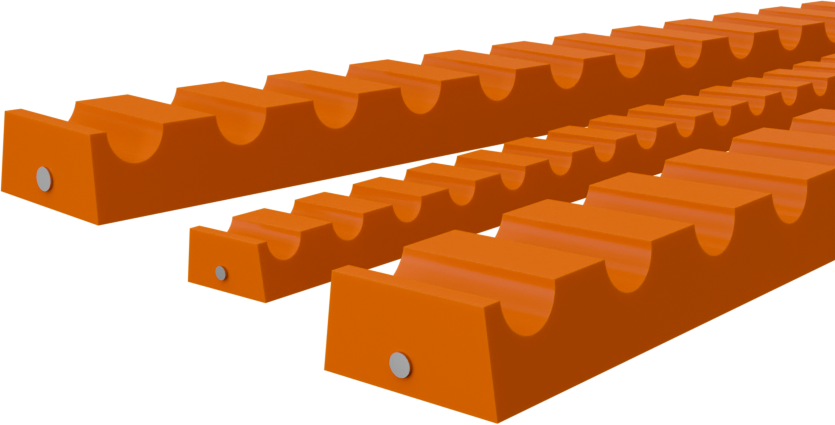

The Notched V BELT 85A SMOOTH Reinforced Polyester is a serrated V-belt made of thermoplastic polyurethane (TPU), orange in color, with a hardness of 85 Sh.A, smooth surface and polyester reinforcement.
It is part of the Belting Skill reinforced belt notched V range.
The combination of serrated profile and polyester reinforcement allows for a flexible and stable belt, suitable for applications requiring reliability, dimensional accuracy and a reinforced configuration. It is indicated for handling systems, start/stop lines and packaging machines.
The range is available in profiles A (13×8 mm), B (17×11 mm) and C (22×14 mm), with dimensional and performance characteristics varying according to the selected section. The hardness tolerance is ± 3 Sh.A.
Codici prodotto e caratteristiche
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 211911506314 | 13X8 (A) | 0.82 | 10 | 30 | 98.4 | 70 | 2.8 | 22 | 48.3 |
| 211911506914 | 17X11 (B) | 1460 | 18 | 30 | 98.4 | 90 | 3.6 | 39.9 | 87.7 |
| 211911508514 | 22X14 (C) | 2400 | 29 | 30 | 98.4 | 120 | 4.8 | 65.5 | 144 |
