Notched V BELT 85A SMOOTH ORANGE
Material
PU
Hardness
SH 85 A
Tolerance
+/- 3 SHA

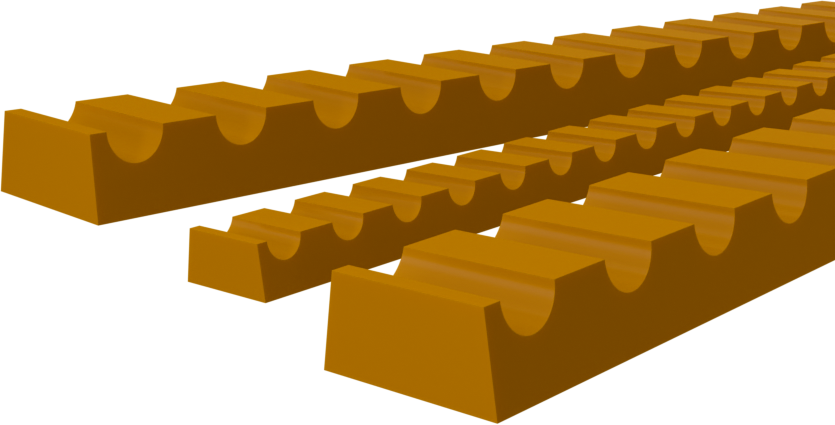

The Notched V BELT 85A SMOOTH is an orange, serrated thermoplastic polyurethane (TPU) V-belt with a hardness of 85 Sh.A and a smooth surface.
It is part of the Belting Skill non-reinforced V belt notched range and is also available with FDA certification.
Notched configuration is indicated for applications requiring reliability, dimensional accuracy and good belt flexibility. It can be used in handling systems, start/stop lines and packaging machines.
The range is available in profiles A (13×8 mm), B (17×11 mm) and C (22×14 mm), with dimensional and performance characteristics varying according to the selected section. The hardness tolerance is ± 3 Sh.A.
Codici prodotto e caratteristiche
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 211909006314 | 13X8 (A) | 0.82 | 10 | 30 | 98.4 | 65 | 2.6 | 22.4 | 49.3 |
| 211909006914 | 17X11 (B) | 1.46 | 18 | 30 | 98.4 | 85 | 3.3 | 39.9 | 87.7 |
| 211909008514 | 22X14 (C) | 2.4 | 29 | 30 | 98.4 | 115 | 4.5 | 65.5 | 144 |
