Pentagonal v belt 85A smooth transparent
Material
PU
Hardness
SH 85 A
Tolerance
+/- 3 SHA

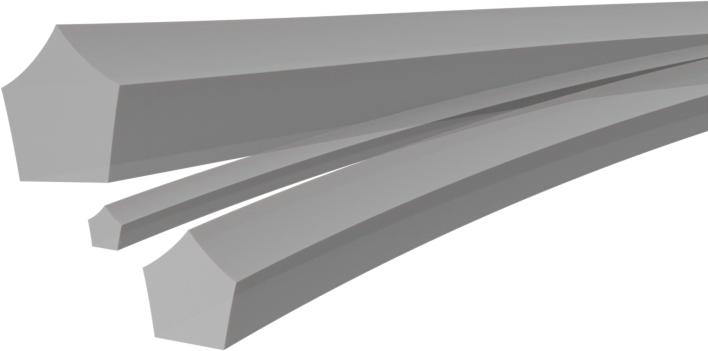

The Pentagonal v belt 85A smooth is a pentagonal V-belt made of thermoplastic polyurethane (TPU), transparent color, with 85 Sh.A hardness and smooth surface.
It is part of the Belting Skill V-belt range without reinforcement and is also available with FDA certification.
The pentagonal configuration is indicated for applications requiring reliability, dimensional accuracy, and specific belt geometry. It can be used in handling systems, start/stop lines and packaging machines.
The hardness tolerance is ± 3 Sh.A.
Product codes and specifications
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 4.072.B/TPN | 17X20 (B) | 2.13 | 25.6 | 40 | 131.2 | 170 | 6.8 | 51.5 | 113.2 |
| 4.072.C/TPN | 22X25 (C) | 3.65 | 43.8 | 30 | 98.4 | 210 | 8.4 | 87.6 | 192.7 |
