V belt 85A smooth blue
Material
PU
Hardness
SH 85 A
Tolerance
+/- 3 SHA

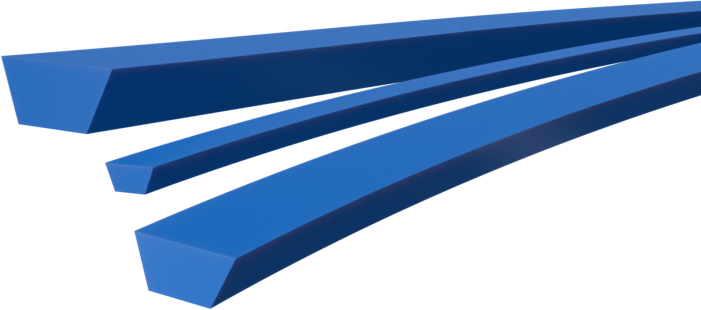

The V belt 85A smooth blue FDA is a blue thermoplastic polyurethane (TPU) V-belt with a hardness of 85 Sh.A and a smooth surface.
It is part of the Belting Skill V-belt range without reinforcement and is available with FDA certification.
The smooth finish and 85 Sh.A hardness make it suitable for handling applications, start/stop lines and packaging machines where reliability, dimensional accuracy and suitable materials for specific application needs are required.
The range is available in profiles A (13×8 mm), B (17×11 mm) and C (22×14 mm), with dimensional and performance characteristics varying according to the selected section. The hardness tolerance is ± 3 Sh.A.
Product codes and specifications
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 4.072.A/B | 13X8 (A) | 0.82 | 10 | 30 | 98.4 | 80 | 3.2 | 20.6 | 45.3 |
| 4.072.B/B | 17X11 (B) | 1.46 | 18 | 30 | 98.4 | 100 | 3.9 | 37.2 | 81.9 |
| 4.072.C/B | 22X14 (C) | 2.4 | 29 | 30 | 98.4 | 145 | 5.7 | 60.8 | 133.7 |
