- V BELT 85A SMOOTH Reinforced Polyester ORANGE
V BELT 85A SMOOTH Reinforced Polyester ORANGE
Material
PU
Hardness
SH 85 A
Tolerance
+/- 3 SHA

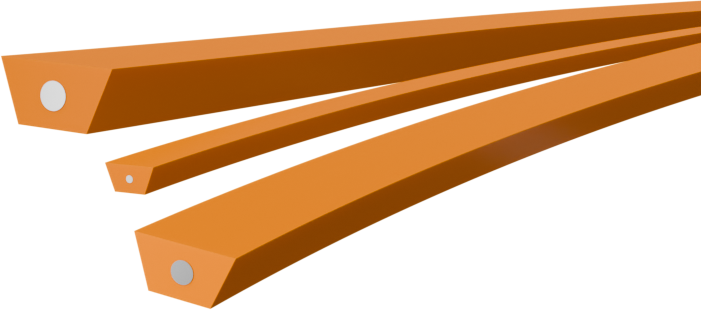

The V BELT 85A SMOOTH Reinforced Polyester is an orange thermoplastic polyurethane (TPU) V-belt with 85 Sh.A hardness and a smooth surface, featuring polyester reinforcement.
It is part of the Belting Skill reinforced V-belt range.
Due to the dimensional accuracy and strength of the TPU, it is suitable for industrial applications requiring reliability, such as handling systems, start/stop lines and packaging machines.
The range is available in profiles A, B and C, with dimensions 13×8 mm, 17×11 mm and 22×14 mm. Dimensional and performance characteristics vary according to the selected profile. The hardness tolerance is ± 3 Sh.A.
Codici prodotto e caratteristiche
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 211904506314 | 13X8 (A) | 0.82 | 10 | 30 | 98.4 | 90 | 3.5 | 25.9 | 57 |
| 211904506914 | 17X11 (B) | 1.46 | 18 | 30 | 98.4 | 120 | 4.7 | 46.9 | 103.1 |
| 211904508514 | 22X14 (C) | 2.4 | 29 | 30 | 98.4 | 160 | 6.3 | 77 | 169.5 |
