Notched v belt 85A smooth blue
Material
PU
Hardness
SH 85 A
Tolerance
+/- 3 SHA

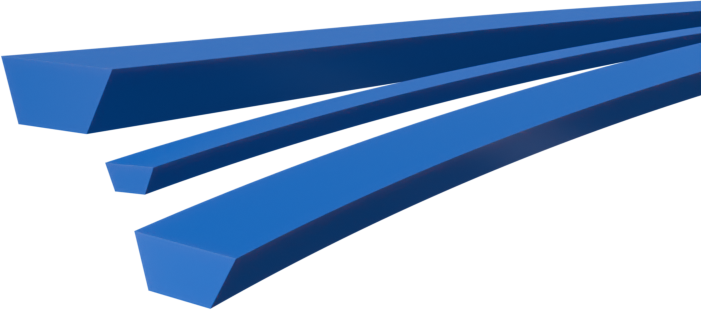

The Notched v belt 85A smooth FDA is a serrated V-belt made of thermoplastic polyurethane (TPU), blue in color, with a hardness of 85 Sh.A and a smooth surface.
It is part of the Belting Skill non-reinforced V belt notched range and is FDA certified.
The notched configuration provides good belt flexibility, while FDA certification makes it suitable for applications requiring materials that meet specific food industry requirements. It is indicated for handling systems, start/stop lines and packaging machines.
The range is available in profiles A (13×8 mm), B (17×11 mm) and C (22×14 mm), with dimensional and performance characteristics varying according to the selected section. The hardness tolerance is ± 3 Sh.A.
Product codes and specifications
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 4.072.A/BN | 13X8 (A) | 0.82 | 10 | 30 | 98.4 | 60 | 2.4 | 17.5 | 38.5 |
| 4.072.B/BN | 17X11 (B) | 1.46 | 18 | 30 | 98.4 | 75 | 3 | 31.6 | 69.5 |
| 4.072.C/BN | 22X14 (C) | 2.4 | 29 | 30 | 98.4 | 110 | 4.3 | 51.7 | 113.67 |
