Notched v belt 88A smooth green
Material
PU
Hardness
SH 88 A
Tolerance
+/- 3 SHA

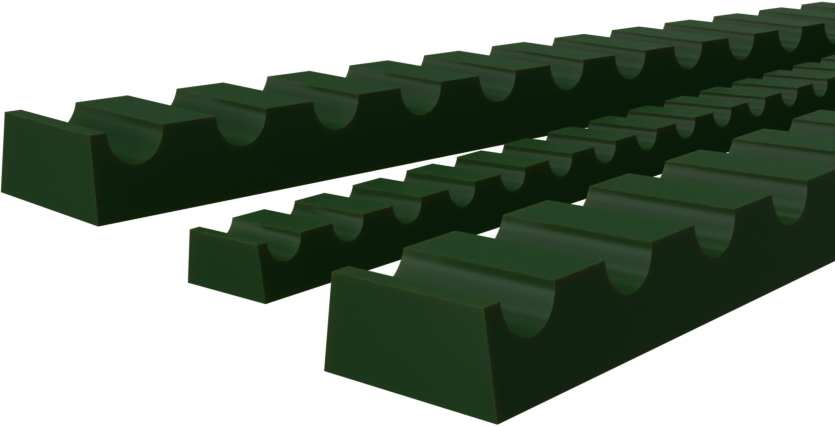

The Notched v belt 88A smooth is a green, serrated thermoplastic polyurethane (TPU) V-belt with a hardness of 88 Sh.A and a smooth surface.
It is part of the Belting Skill belt notched without reinforcement V range.
Notched configuration is indicated for applications requiring reliability, dimensional accuracy and good belt flexibility. It can be used in handling systems, start/stop lines and packaging machines.
The range is available in profiles A (13×8 mm), B (17×11 mm) and C (22×14 mm), with dimensional and performance characteristics varying according to the selected section. The hardness tolerance is ± 3 Sh.A.
Product codes and specifications
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 4.072.A/GN | 13X8 (A) | 0.82 | 10 | 30 | 98.4 | 75 | 3 | 25.5 | 56.1 |
| 4.072.B/GN | 17X11 (B) | 1.46 | 18 | 30 | 98.4 | 90 | 3.6 | 45.1 | 99.2 |
| 4.072.C/GN | 22X14 (C) | 2.4 | 29 | 30 | 98.4 | 120 | 4.8 | 74.5 | 163.8 |
