Conveyor belt guides
Conveyor belt guides are components applied to conveyor belts to ensure correct belt tracking when transverse forces are present, for example during lateral product loading or unloading.
Belting Skill manufactures PU, PVC and special-compound guides for conveyor belts and industrial material handling systems.
Types of conveyor belt guides
The range includes various types of conveyor belt guides, available in different materials and geometries according to the application.
- Polyurethane guides
- PVC guides
- Special-compound PVC + TPU guides
All products

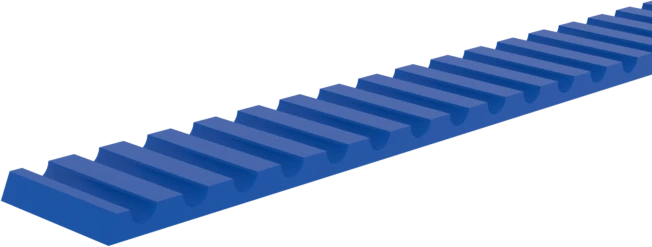

Flat PVC 15x6.5mm black notched guide
PVC
SH 65 A
Flat PVC 25x6.5mm blue notched
PVC
SH 65 A

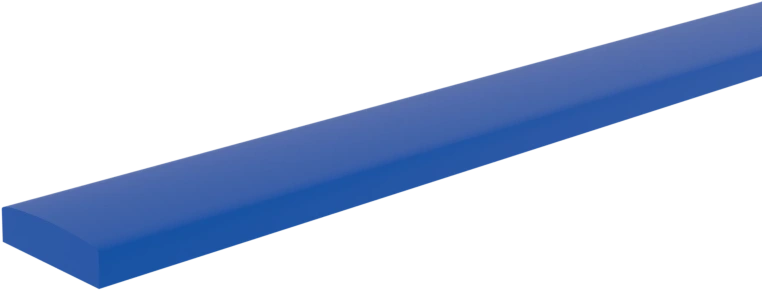

Rectangular guide 60A PVC 30X5
PVC
SH 65 A

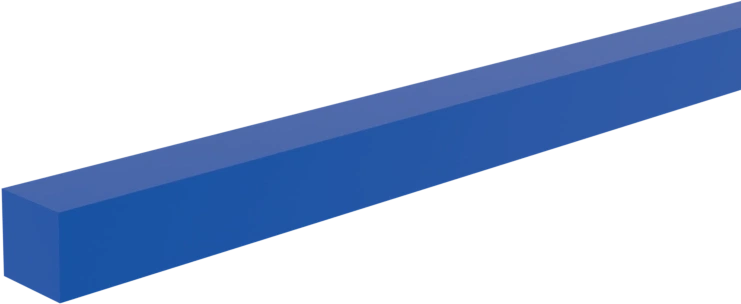

PVC squared guides
PVC
-

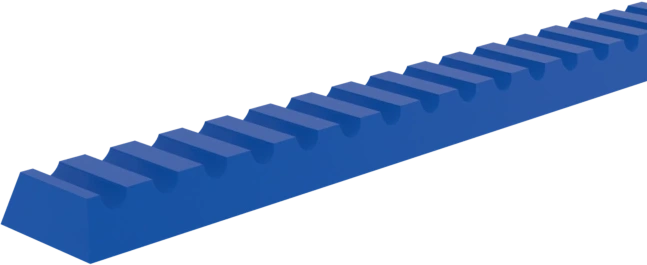

K Series – PVC notched guides
PVC
-

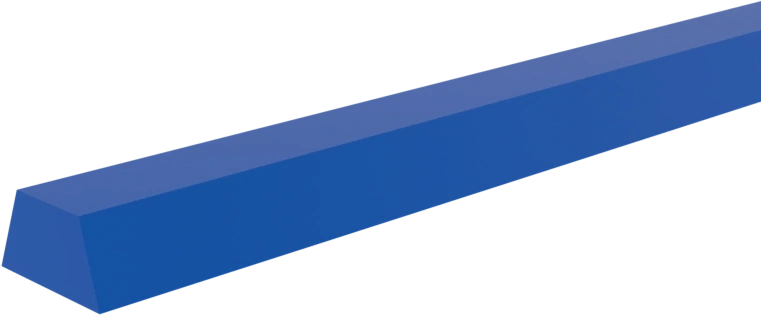

K Series – PVC guides
PVC
-
Quadrangular guide 60A PVC
PVC
SH 60 A
Notched guide 60A PVC
PVC
SH 60 A
PU95 squared guides
Polyurethane (TPU)
-
PU85 squared guides
Polyurethane (TPU)
-
PU70 squared guides
Polyurethane (TPU)
-
K Series – PU95 notched guides
Polyurethane (TPU)
-
K Series – PU85 notched guides
Polyurethane (TPU)
-
K Series – PU70 notched guides
Polyurethane (TPU)
-
K Serie – PU95 guides
Polyurethane (TPU)
-
K Series – PU85 guides
Polyurethane (TPU)
-
K Series – PU70 guides
Polyurethane (TPU)
-
Materials
Belting Skill conveyor belt guides are manufactured from PU, PVC and special compounds, with different Shore A hardness levels according to the application. Material selection depends on parameters such as flexibility, abrasion resistance and compatibility with the belt cover.
Advantages of conveyor belt guides
Conveyor belt guides are used in conveying applications where transverse forces are present, for example during lateral product loading or unloading.
The main advantages include:
- support for correct belt tracking and positioning
- abrasion resistance
- good oil resistance
- good flexibility
The guides contribute to conveying stability and correct belt tracking.
Available configurations
Conveyor belt guides can be supplied in various technical configurations according to the belt type and application.
Available options include:
- different geometries and cross-sections
- standard, toothed and rectangular versions
- different Shore A hardness levels
- various standard colours (white, blue, green, petrol green, black and transparent)
- other colours available on request, subject to a minimum order quantity
The guides are designed to be compatible with conveyor belt covers and can be applied using hot-air or high-frequency welding, ensuring a stable and durable bond.
Industries and applications
Conveyor belt guides are used in various industrial material handling applications, particularly where transverse forces must be counteracted and correct belt tracking must be ensured.
FAQs about conveyor belt guides
What are conveyor belt guides used for?
Guides are used in conveying applications where transverse forces are present, helping to ensure correct belt tracking and positioning.
What materials are they available in?
The guides are available in polyurethane, PVC and special compounds.
Are different shapes and hardness levels available?
Yes, the range includes various geometries and Shore A hardness levels according to the application.
How are the guides applied?
They can be applied using different methods, including hot-air and high-frequency welding.
Are they available in multiple colours?
Yes, standard colours include white, blue, green, petrol green, black and transparent. Other colours can be supplied on request, subject to a minimum order quantity.
Can I apply polyurethane guides to a PVC belt?
No. For PVC belts, we recommend applying PVC guides. Alternatively, SPECIAL COMPOUND guides can be used, as they are suitable for both PVC and POLYURETHANE belts.
