Pentagonal V BELT 88A SMOOTH Reinforced polyester GREEN
Material
PU
Hardness
SH 88 A
Tolerance
+/- 3 SHA

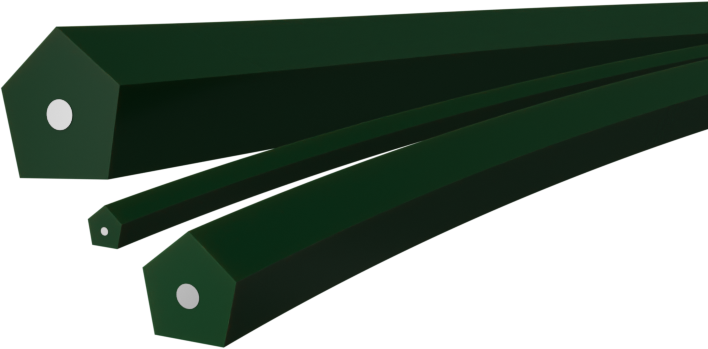

The Pentagon V BELT 88A SMOOTH Reinforced Polyester is a green, pentagonal thermoplastic polyurethane (TPU) V-belt with 88 Sh.A hardness, a smooth surface and polyester reinforcement.
It is part of the Belting Skill reinforced pentagonal V-belt range.
The combination of pentagonal geometry and polyester reinforcement ensures a reinforced structure, suitable for applications requiring reliability, dimensional accuracy and continuity of operation. It can be used in handling systems, start/stop lines and packaging machines.
Available in profiles B (17×20 mm) and C (22×25 mm), this belt offers different dimensional configurations depending on application needs. The hardness tolerance is ± 3 Sh.A.
Codici prodotto e caratteristiche
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 211104507085 | 17X20 (B) | 2.13 | 25.6 | 40 | 131.2 | 190 | 7.6 | 59 | 129.8 |
| 211104508685 | 22X25 (C) | 3.65 | 43.8 | 30 | 98.4 | 240 | 9.6 | 100.7 | 221.6 |
