V BELT 88A SMOOTH Reinforced Polyester GREEN
Material
PU
Hardness
SH 88 A
Tolerance
+/- 3 SHA

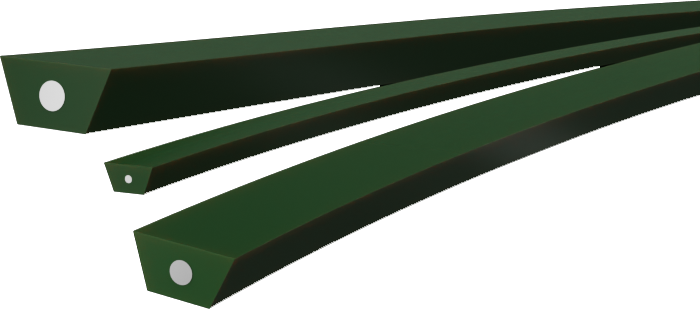

The V BELT 88A SMOOTH Reinforced Polyester is a green thermoplastic polyurethane (TPU) V-belt with 88 Sh.A hardness and a smooth surface, featuring polyester reinforcement.
It is part of the Belting Skill reinforced V-belt range.
Due to the dimensional accuracy and strength of the TPU, it is suitable for industrial applications requiring reliability, such as handling systems, start/stop lines and packaging machines. Polyester reinforcement helps make the belt suitable for applications that require a reinforced configuration.
The range is available in profiles A, B and C, with dimensions 13×8 mm, 17×11 mm and 22×14 mm. Dimensional and performance characteristics vary according to the selected profile. The hardness tolerance is ± 3 Sh.A.
Codici prodotto e caratteristiche
| CODE | PROFILE DIMENSION (BXH) | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RACCOMENDED MIN. PULLEY Ø | F MAX / BELT STANDARD | |||
|---|---|---|---|---|---|---|---|---|---|
| CM 2 | KG/100M | M | FT | MM | INCH | MM | INCH | ||
| 211904506385 | 13X8 (A) | 0.82 | 10 | 30 | 98.4 | 100 | 4 | 30 | 66 |
| 211904506985 | 17X11 (B) | 1.46 | 18 | 30 | 98.4 | 130 | 5.2 | 53 | 116.7 |
| 211904508585 | 22X14 (C) | 2.4 | 29 | 30 | 98.4 | 170 | 6.8 | 87.7 | 193 |
