ROUND BELT 90A SMOOTH WHITE
Material
PU
Hardness
SH 90 A
Tolerance
+/- 3 SHA

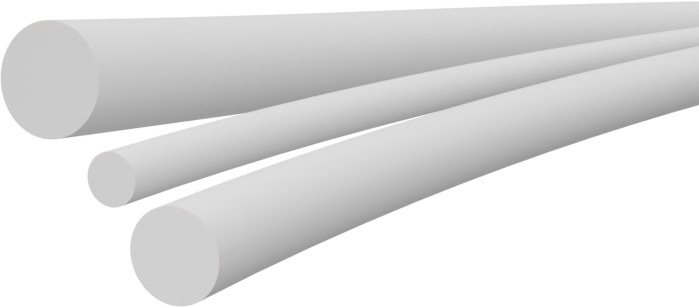

The ROUND BELT 90A SMOOTH is a round polyurethane (PU) belt, white in color, with a hardness of 90 Sh.
A and a smooth surface. It is part of the Belting Skill round belt range without reinforcement and is also available with FDA certification.
Due to the flexibility of polyurethane, it is suitable for industrial transport and transmission applications, including on conveyors and roller conveyors. The material also offers good chemical resistance, hydrolysis resistance and resistance to oils and fats.
The range is available in diameters from 2 mm to 20 mm, with dimensional and performance characteristics varying according to the selected size. The hardness tolerance is ± 3 Sh.A.
Codici prodotto e caratteristiche
| CODE | DIAMETER Ø | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RECOMMENDED MIN. PULLEY Ø | FMAX/BELT (STANDARD) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| MM | INCH | CM2 | KG/100M | M | FT | MM | INCH | KG | LBS | |
| 110115000136 | 2 | 5/64 | 0.032 | 0.5 | 100 | 328 | 20 | 0.8 | 1.9 | 4.1 |
| 110115000236 | 3 | 1/8 | 0.071 | 0.9 | 100 | 328 | 30 | 1.2 | 3.4 | 7.4 |
| 110115000536 | 4 | 5/32 | 0.126 | 1.6 | 100 | 328 | 40 | 1.6 | 5.9 | 12.9 |
| 110115000736 | 4.8 | 3/16 | 0.181 | 2.2 | 100 | 328 | 50 | 2 | 8.5 | 18.7 |
| 110115000836 | 5 | 1/5 | 0.197 | 2.4 | 100 | 328 | 55 | 2.2 | 9.3 | 20.4 |
| 110115001136 | 6 | 7/32 | 0.283 | 3.4 | 100 | 328 | 65 | 2.6 | 13.3 | 29.2 |
| 110115001236 | 6.3 | 1/4 | 0.31 | 3.8 | 100 | 328 | 70 | 2.8 | 14.6 | 32.2 |
| 110115001436 | 7 | 9/32 | 0.385 | 4.7 | 50 | 164 | 75 | 3 | 18.3 | 40.2 |
| 110115001536 | 8 | 5/16 | 0.5 | 6 | 50 | 164 | 85 | 3.4 | 23.8 | 52.3 |
| 110115001636 | 9.5 | 3/8 | 0.71 | 8.5 | 50 | 164 | 95 | 3.8 | 33.3 | 73.2 |
| 110115001736 | 10 | 7/16 | 0.785 | 9.4 | 50 | 164 | 105 | 4.2 | 37.3 | 82 |
| 110115001836 | 12 | 15/32 | 1.13 | 13.5 | 50 | 164 | 120 | 4.8 | 53.3 | 117.2 |
| 110115001936 | 12.5 | 1/2 | 1.23 | 14.8 | 50 | 164 | 125 | 5 | 58 | 127.6 |
| 110115002336 | 15 | 19/32 | 1.77 | 21.5 | 50 | 164 | 150 | 6 | 83.6 | 184 |
| 110115002536 | 18 | 3/4 | 2.54 | 31 | 50 | 164 | 185 | 7.4 | 119.8 | 263.5 |
| 110115002736 | 20 | 25/32 | 3.14 | 40 | 50 | 164 | 200 | 8 | 148.3 | 326.2 |
