Round belt 88A rough green
Material
PU
Hardness
SH 88 A
Tolerance
+/- 3 SHA

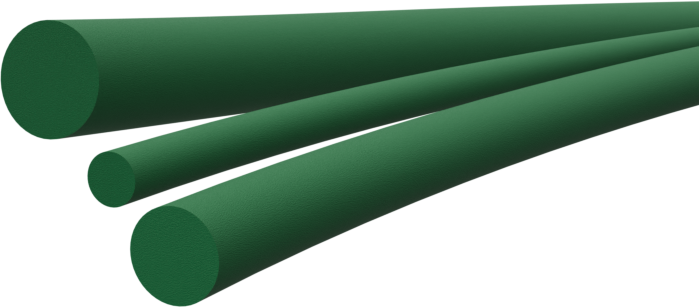

The Round belt 88A rough is a round polyurethane (PU) belt, green in color, with 88 Sh.A hardness and a rough finish.
Dimensional and performance characteristics vary according to the selected size and include cross-section, indicative weight, standard roll length, recommended minimum pulley diameter and standard maximum load. The hardness tolerance is ± 3 Sh.A.
Product codes and specifications
| CODE | DIAMETER Ø | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RECOMMENDED MIN. PULLEY Ø | FMAX / BELT (STANDARD) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | cm2 | kg/100m | m | ft | mm | inch | kg | lbs | |
| 4.072.2G | 2 | 5/64 | 0.032 | 0.5 | 100 | 328 | 15 | 06 | 1,2 | 2,7 |
| 4.072.3G | 3 | 1/8 | 0.071 | 0.9 | 100 | 328 | 25 | 1 | 2.7 | 5.8 |
| 4.072.4G | 4 | 5/32 | 0.126 | 1.6 | 100 | 328 | 35 | 1.4 | 4.7 | 10.3 |
| 4.072.4,8G | 4.8 | 3/16 | 0.181 | 2.2 | 100 | 328 | 45 | 1.8 | 6.7 | 14.8 |
| 4.072.5G | 5 | 1/5 | 0.197 | 2.4 | 100 | 328 | 50 | 2 | 7.1 | 15.7 |
| 4.072.6G | 6 | 7/32 | 0.283 | 3.4 | 100 | 328 | 60 | 2.4 | 10.4 | 22.9 |
| 4.072.6,3G | 6.3 | 1/4 | 0.31 | 3.8 | 100 | 328 | 65 | 2.6 | 11.4 | 25.1 |
| 4.072.7G | 7 | 9/32 | 0.385 | 4.7 | 50 | 164 | 70 | 2.8 | 14.1 | 31 |
| 4.072.8G | 8 | 5/16 | 0.5 | 6 | 50 | 164 | 80 | 3.2 | 18.4 | 40.4 |
| 4.072.9,5G | 9.5 | 3/8 | 0.71 | 8.5 | 50 | 164 | 95 | 3.8 | 25.9 | 57 |
| 4.072.10G | 10 | 7/16 | 0.785 | 9.4 | 50 | 164 | 100 | 4 | 28.6 | 62.8 |
| 4.072.12G | 12 | 15/32 | 1.13 | 13.5 | 50 | 164 | 120 | 4.8 | 40.8 | 89.8 |
| 4.072.12,5G | 12.5 | 1/2 | 1.23 | 14.8 | 50 | 164 | 125 | 5 | 44.9 | 98.7 |
| 4.072.15G | 15 | 19/32 | 1.77 | 21.5 | 50 | 164 | 150 | 6 | 64.9 | 142.7 |
| 4.072.18G | 18 | 3/4 | 2.54 | 31 | 50 | 164 | 180 | 7.2 | 92.8 | 204.2 |
| 4.072.20G | 20 | 25/32 | 3.14 | 40 | 50 | 164 | 220 | 8.8 | 115.3 | 253.6 |
