- ROUND BELT 88A SMOOTH Reinforced polyester GREEN
ROUND BELT 88A SMOOTH Reinforced polyester GREEN
Material
PU
Hardness
SH 88 A
Tolerance
+/- 3 SHA

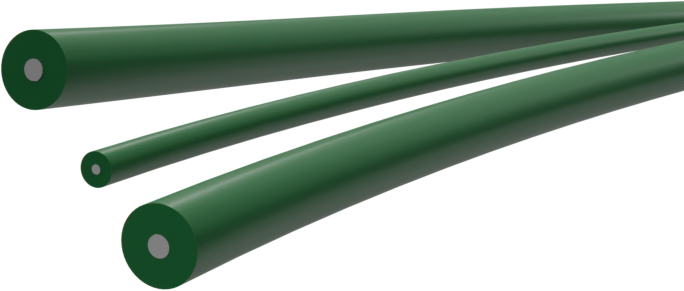

The ROUND BELT 88A SMOOTH Reinforced Polyester is a round, green, 88 Sh.A hardness, smooth-surfaced polyurethane (PU) belt with polyester reinforcement.
It is part of the Belting Skill reinforced round belt range.
Due to the flexibility of polyurethane, it is suitable for industrial transport and transmission applications, including on conveyors and roller conveyors. The material also offers good chemical resistance, hydrolysis resistance and resistance to oils and fats.
The range is available in diameters from 6 mm to 20 mm, with dimensional and performance characteristics varying according to the selected size. The hardness tolerance is ± 3 Sh.A.
Codici prodotto e caratteristiche
| CODE | DIAMETER Ø | CROSS SECTION | APPROX WEIGHT | STANDARD ROLL | RECOMMENDED MIN. PULLEY Ø | FMAX/BELT (STANDARD) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| MM | INCH | CM2 | KG/100M | M | FT | MM | INCH | KG | LBS | |
| 110117501185 | 6 | 7/32 | 0.283 | 3.4 | 100 | 328 | 60 | 2.3 | 10.4 | 22.9 |
| 110117501585 | 8 | 5/16 | 0.5 | 6 | 50 | 164 | 80 | 3.2 | 18.4 | 40.4 |
| 110117501785 | 10 | 7/16 | 0.785 | 9.4 | 50 | 164 | 100 | 3.9 | 28.6 | 62.8 |
| 110117501885 | 12 | 15/32 | 1.13 | 13.5 | 50 | 164 | 120 | 4.7 | 40.8 | 89.8 |
| 110117502385 | 15 | 19/32 | 1.77 | 21.5 | 50 | 164 | 150 | 5.9 | 64.9 | 142.7 |
| 110117502585 | 18 | 3/4 | 2.54 | 31 | 50 | 164 | 170 | 6.8 | 91 | 200.1 |
| 110117502785 | 20 | 25/32 | 3.14 | 40 | 50 | 164 | 190 | 7.6 | 100.6 | 221.3 |
