ROUND BELT 85A SMOOTH TUBULAR/ HOLLOW ROUND BELT RED
Material
PU
Hardness
SH 85 A
Tolerance
+/- 3 SHA

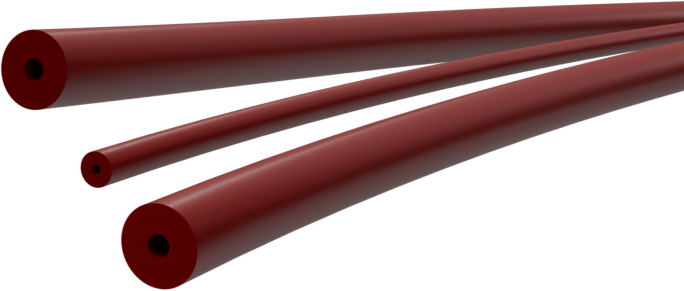

The ROUND BELT 85A SMOOTH TUBULAR / HOLLOW ROUND BELT is a hollow round polyurethane (PU) belt, red in color, with a hardness of 85 Sh.
A and a smooth surface. It is part of the Belting Skill non-reinforced round belt range and features a tubular structure with an internal hole.
Due to the flexibility of polyurethane, it is suitable for industrial transport and transmission applications, including on conveyors and roller conveyors. The material also offers good chemical resistance, hydrolysis resistance and resistance to oils and fats.
The range is available with an outside diameter of 5 mm to 18 mm and an inside diameter of 2.2 mm to 3.2 mm, with dimensional and performance characteristics varying depending on the size selected. The hardness tolerance is ± 3 Sh.A.
Codici prodotto e caratteristiche
| CODE | EXTERNAL Ø | INTERNAL Ø (HOLE) | TRACTION FORCE N % ELONGATION | SURFACE FINISHING | MINIMUM PULLEY Ø | CORD REINFORCEMENT |
|---|---|---|---|---|---|---|
| D MM | D MM | MM | SELECT | |||
| 4.072.5X2.2 | 5 | 2.2 | 20N/8% | SMOOTH | 40 | NO |
| 4.072.6X2.2 | 6 | 2.2 | 30N/8% | SMOOTH | 50 | NO |
| 4.072.8X3.2 | 8 | 3.2 | 60N/8% | SMOOTH | 60 | NO |
| 4.072.10X3.2 | 10 | 3.2 | 90N/8% | SMOOTH | 70 | NO |
| 4.072.12X3.2 | 12 | 3.2 | 150N/8% | SMOOTH | 95 | NO |
| 4.072.15X3.2 | 15 | 3.2 | 220N/8% | SMOOTH | 120 | NO |
| 4.072.18X3.2 | 18 | 3.2 | 350N/8% | SMOOTH | 150 | NO |
