The C – PVC Cleats series includes PVC cleats with hardness 60 ± 5 Sh.A, designed for conveyor belt applications.
They can be applied by high frequency welding.

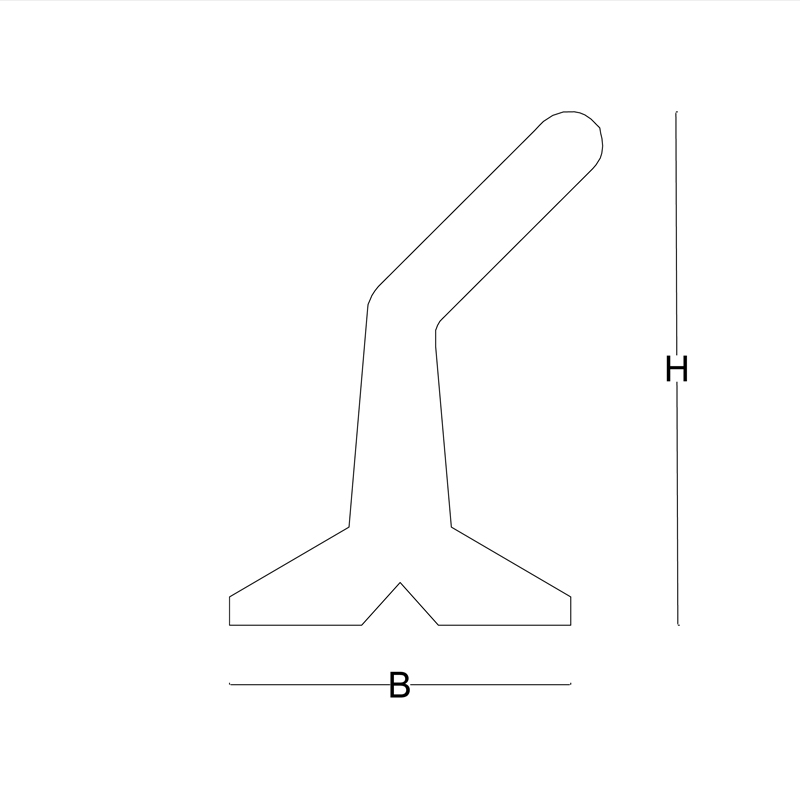

Available in petrol green, blue and white, the C Series cleats are offered in dimensions 40×60 mm and 40×80 mm, with weight and installation characteristics varying according to the selected version.
The blue and white versions are available with FDA certification.
Product codes and specifications
| CODE | DIM | Sh.A | WEIGHT | MIN PITCH transversal | MIN PULL DM. transversal |
|---|---|---|---|---|---|
| 4.023.PVCC60 B/G/W | 40 x 60 mm | 60 ± 5 | 1071 gr/m | 55 mm | 100 mm |
| 4.023.PVCC80 B/G/W | 40 x 80 mm | 60 ± 5 | 1347 gr/m | 55 mm | 100 mm |
